Carre 60

Corner lightbox box solution for an illuminated wall frame

The Carre 60 offers the perfect solution for creating illuminated corner set-ups for wall mounting. The profile is only 60 mm deep and, therefore, creates an elegant and modern appearance. The lightbox is visible from multiple sides and is suitable for L-, U-, and O-shaped configurations.

LED technology: backlit lighting

The textile print is illuminated from the back with LEDs pre-mounted on Lite Panel or Dibond. Wide-angle lenses create an even light distribution. There are two light colour options: 6500K for bright white light comparable to daylight, and 4000K for a warmer, soft yellow-white hue. The brightness of the LED frame is adjustable with a dimmer. This way, the light intensity can be set according to the environment. The LED dimmer is optional. Also optionally, the LED frame can be made compatible with DALI systems. The textile print fits seamlessly into the corners of the configuration for a perfectly sleek design.

Combine it with the Lightbox 60

Together with the Lightbox 60, the possibilities are endless. The Carre 60 is a vertical corner component. The Lightbox 60 profile connects to it seamlessly. Various rectangular configurations are possible: an L, U, and O configuration.

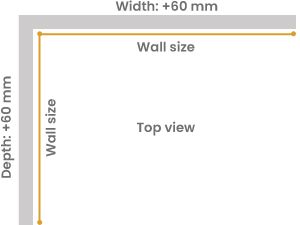

L-configuration

The L-shaped formation enables an lightbox to wrap around a corner. This configuration consists of two single-sided illuminated walls, made with the Lightbox 60 frame attached to one vertical Carre profile. Please note: ensure the frame is ordered 60 mm wider than the wall dimension for a precise fit.

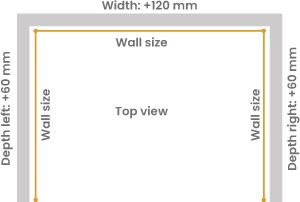

U-configuration

The U-shaped formation allows you to extend a lightbox across multiple corners. This configuration consists of three single-sided illuminated walls, made with the Lightbox 60 frame attached to two vertical Carre profiles. Please note: the two outer frames should be ordered 60 mm wider than the wall measurements, and the middle frame should be 120 mm wider than the distance between the corners.

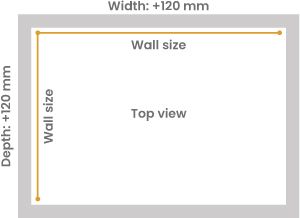

O-configuration

The O-shaped formation is ideal for creating a fully enclosed illuminated banner, for example around a pillar. This configuration consists of four single-sided illuminated walls, made with the Lightbox 60 attached to four vertical Carre profiles. Please note: the frame should be ordered 120 mm wider than the wall dimensions to ensure a perfect fit.

In every desired colour

The Carre 60 comes standard in mill finish, commonly known as untreated aluminium. This profile is not visible in the frame. The Lightbox 60, the visible part of the frame, comes standard in silver, white and black. Do you prefer a different colour? Please enter your desired RAL colour code, and we will powder-coat the profile in the colour of your choice.
